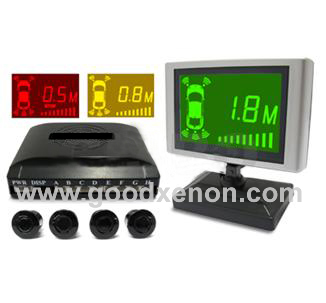

| Newest Cisbo Colorized LCD parking sensor with three color backlights LCD display, it can alarm the driver through different color and different buzzer sound when reversing. It is very humanism and more safety. |
| |
| Specifications: |
| 1. Digital LCD showing obstacle distance |
| 2. Alarm by Bi-Bi sound |
| 3. Different color and different buzzer frequency to alarm the driver. |
| 4. The distance range is 1.0-2.0M, The backlight is Green, and the buzzer alarm is slowly, which means the parking distance is safe.The distance range is 0.9-0.7M, The backlights is Yellow, the buzzer alarm is fast, which near the parking carefully.The distance range is 0.6-0.0M, The backlights is Red, the buzzer alarm is fastest and voice bigger, which means the parking,distance is nearest with obstacle. |
| 5. 2-8 sensors are available |
| 6. All kinds of sensor colors and styles are available |
| |
| Packing Details: |
| Carton Size: 460mmX310mmX510mm |
| Quantity: 20 PCS/ CTN |
| G.W.: 15 KG |
| N.W.: 14 KG |
| |
| Technical Parameters: |
| Rated Voltage: 12V DC |
| Operating Range: 10.5V~16V DC |
| Rated Current: 50mA~180mA |
| Detecting Distance: 0.3~2.0m |
| Ultrasonic Frequency: 40KHz |
| Display Working Temperature: -30~+70.C |
| |
| Display mode: |
|
stage |
distance |
area |
Buzzer |
backlight |
Display |
| 1 |
200-160cm |
safety |
no |
green |
2.0-1.6 |
| 2 |
150-100cm |
safety |
Bi----Bi----Bi |
green |
1.5-1.0 |
| 3 |
90-80cm |
Warning |
Bi—Bi--Bi |
yellow |
0.9-0.8 |
| 4 |
70-60cm |
Warning |
Bi-Bi-Bi |
yellow |
0.7-0.6 |
| 5 |
0-60cm |
dangerous |
Bi------ |
red |
0.0 | |
| |
