Technical parameters
1). Working temperature range: -30℃～+80℃;
2). Working voltage: DC 10V～16V;
3). Rated working voltage: DC12V;
4). Rated working current: 10mA~100Ma;
5). Power supply reversed-connect protect: yes;
6). Buzzer volume: ≥60db;
7). Display size:86.0*55.5*16.0mm;
Functions:
1). Accumulator voltage display

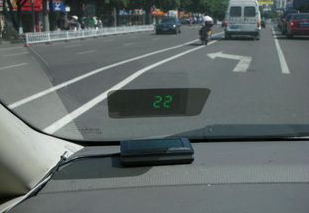

When electrify, HUD will show the accumulator voltage in one second. The buzzer will release long alert sound (“Bi……”) if the value is
less than 11V.
2). Running speed display, Overspeed warning, Overspeed alarm;
a. Running speed display:

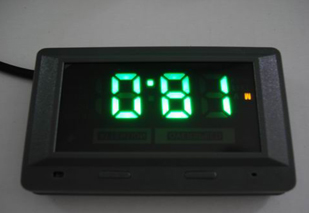

When electrify in 2 seconds, The screen will show instant running speed( ≥initialization speed ”START). If display unsuccessful,
please confirm whether the “SPEED” was set correctly. If not, please enter speed menu to reset according to the instruction.
b. Overspeed warning:
When instant running speed reach the overspeed warning value “ ATTEN”, the buzzer will release a short sound(“Bi”)
Overspeed alarm:
When instant running speed reach the overspeed alarm value “ ALARM”, the buzzer will release a long sound (“Bi……”)
3) Engine revolution display:
When electrify in 2 seconds, the screen will display the engine revolutions(MAX 6750R/m). If display unsuccessful, please enter MOTOR menu
to reset the revolution.
4) Parking distance display
|
